USGS topo maps use a two-dimensional surface to depict a three-dimensional view of the earth’s surface. By use of contour lines, a flat sheet of paper can be made to depict the elevation and relief of the earth’s topography. FYI...Section 2 of my online video-based land-navigation course covers in detail how to understand and use topo maps.

A good map which accurately depicts the terrain is the most important tool a land navigator can have. Through the technique of terrain association—that is, matching the terrain to the map, and the map to the terrain—a navigator can find a path to the desired destination.

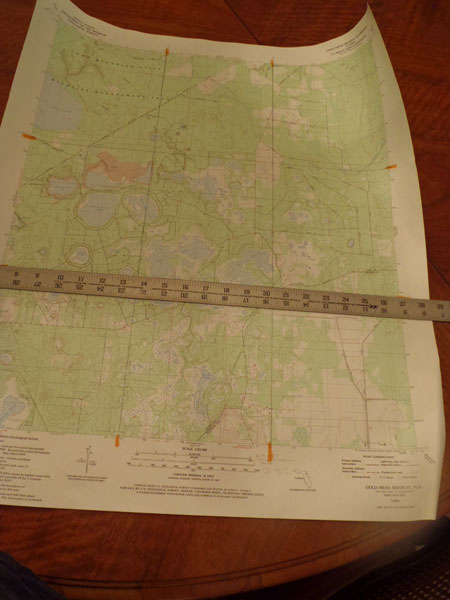

The USGS 7.5-minute Quad Maps

Perhaps the most common topographical maps available in the United States are the United States Geological Survey (USGS) 7.5 “quad” maps. These maps depict a quadrangle of the earth’s surface encompassing 7.5 minutes of longitude and 7.5 minutes of latitude. Since a minute of latitude represents one nautical mile (6,076 feet or 1.15 statute miles) on the earth, a 7.5 quad map shows 7.5 nautical miles of latitude.

The amount of space encompassed by the longitude lines varies, since these meridians of longitude get closer together as you go from the equator toward each pole.

Color coded

 USGS topographical maps use colors to signify different terrain features.

  • Green  -- forested or vegetative areas.
  • White   -- open terrain.
  • Brown -- contour lines
  • Blue -- water
  • Black -- man-made features such as buildings, small roads, and trails
  • Red -- major roads.

Information in the Map's Margin

The map's margin provides lots of useful information to help you make sense of the map itself:

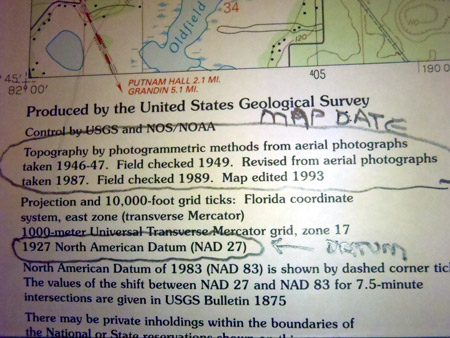

The Map Date -- The year the map was made.

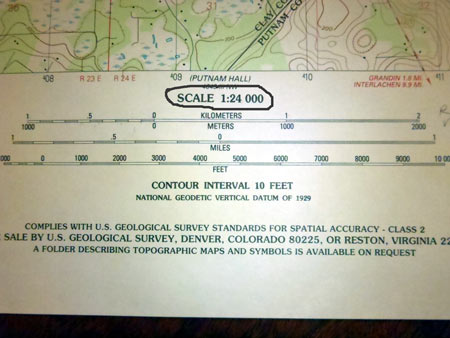

The Map Scale -- The map’s scale is the relationship of distance on the map to distance on the terrain.

A USGS 7.5 quad topo map has a scale of 1:24,000, meaning that any given distance on the map equals 24,000 times that distance on the terrain.

An inch on the map therefore equals 24,000 inches (2,000 feet) on the terrain. In metric, a centimeter on the map equals 24,000 centimeters (240 meters) on the terrain.

There are other scales, but the 1:24,000 is the most popular for USGS topo maps. These are called “large scale” maps because they show a large amount of detail. Small scale maps show less detail, but encompass a broader area.

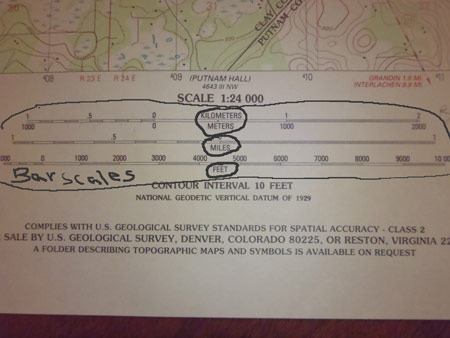

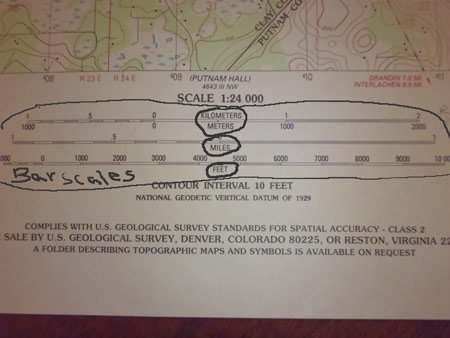

Bar Scales -- Indicate distance in miles, feet, kilometers, and maybe nautical miles.

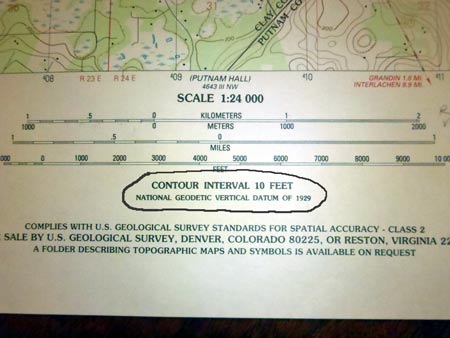

Contour Interval  -- The vertical distance between contour lines.

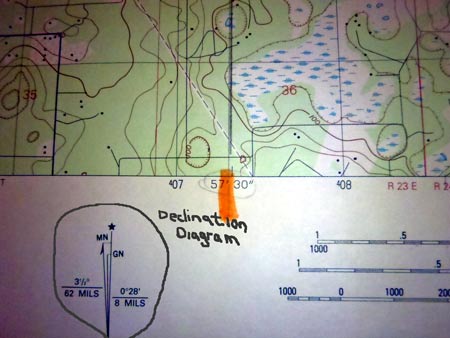

Declination Diagram -- Shows the difference between:

  • True North
  • Magnetic North
  • Grid North

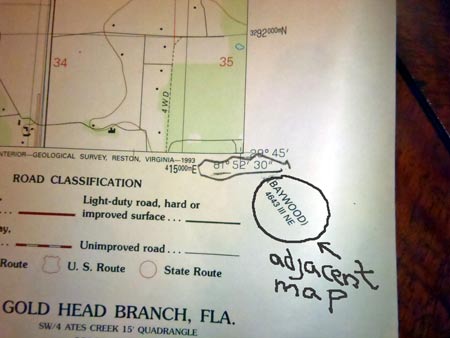

Adjacent Maps -- The names of the next maps over in the series.

Legend -- Explains what the map's symbols means. Here is a complete list of map symbols.

Map Datum

The map’s datum is a technical cartography thing, and refers to the originating points of the map’s grid lines--whether the grid be latitude and longitudeUniversal Transverse Mercator grid, or the Military Grid Reference System.

Two datums (data?) are used on USGS topo maps: the North American Datum of 1927 (NAD 27) and the North American Datum of 1983 (NAD 83).

If you run across a datum called the World Geodetic Survey of 1984 (WGS 84), it is interchangeable with NAD 83.

It’s important to get the datum correct when stating map coordinates. Two people using maps with different datums, can’t expect their maps' coordinates to match up exactly. There could be several hundred meters of difference between them.
